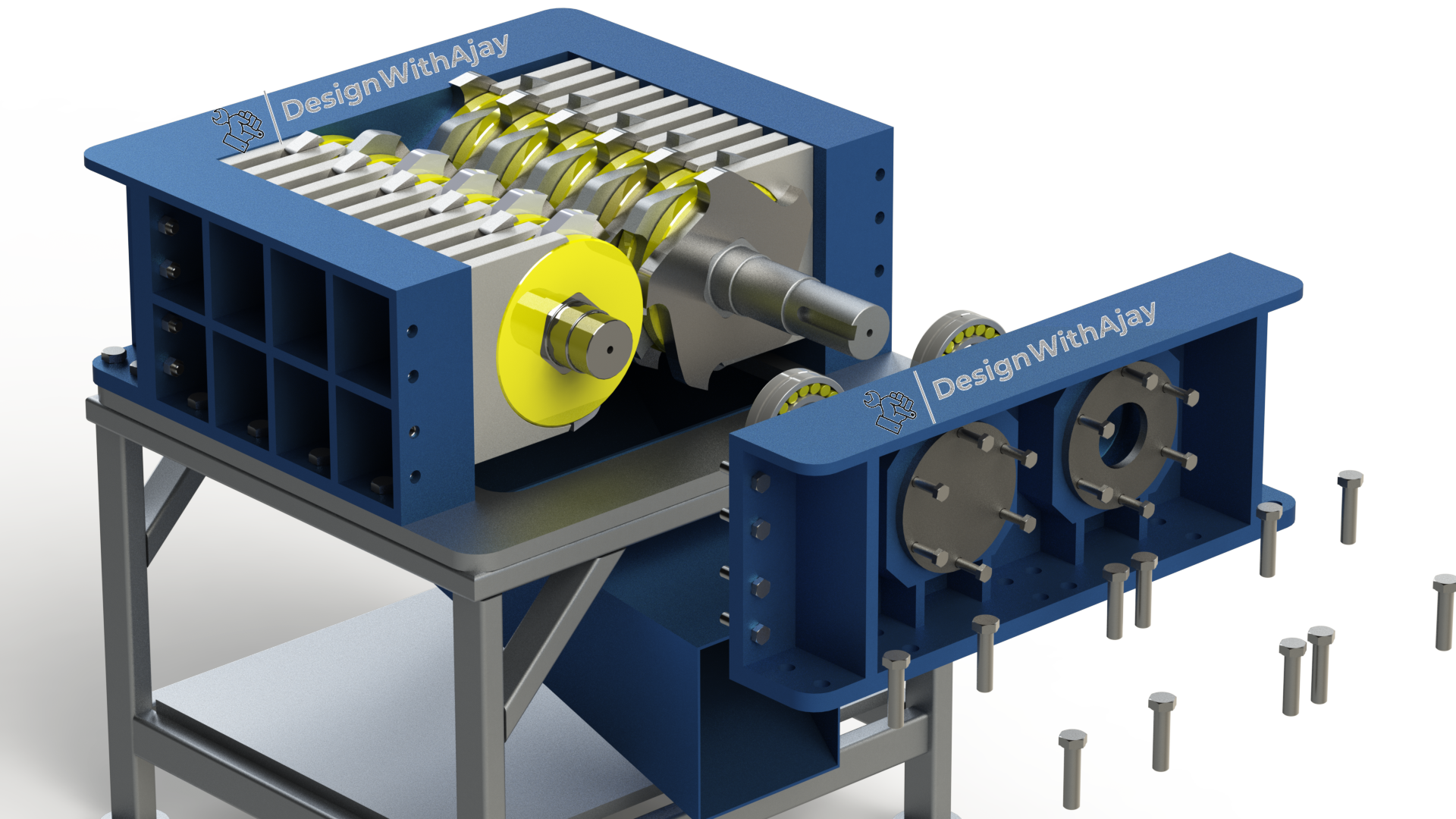

Heavy-Duty Shredder Machine featuring a robust, high-performance design for industrial shredding applications, ensuring durability and precision.
Heavy Duty Plastic Shredder Machine - Image 2
Heavy Duty Plastic Shredder Machine - Image 3
Heavy Duty Plastic Shredder Machine - Image 4
Heavy Duty Plastic Shredder Machine - Image 5
Heavy Duty Plastic Shredder Machine - Image 6
Heavy Duty Plastic Shredder Machine - Image 7

Heavy Duty Plastic Shredder Machine

Original price was: ₹1,900.00.Current price is: ₹990.00.

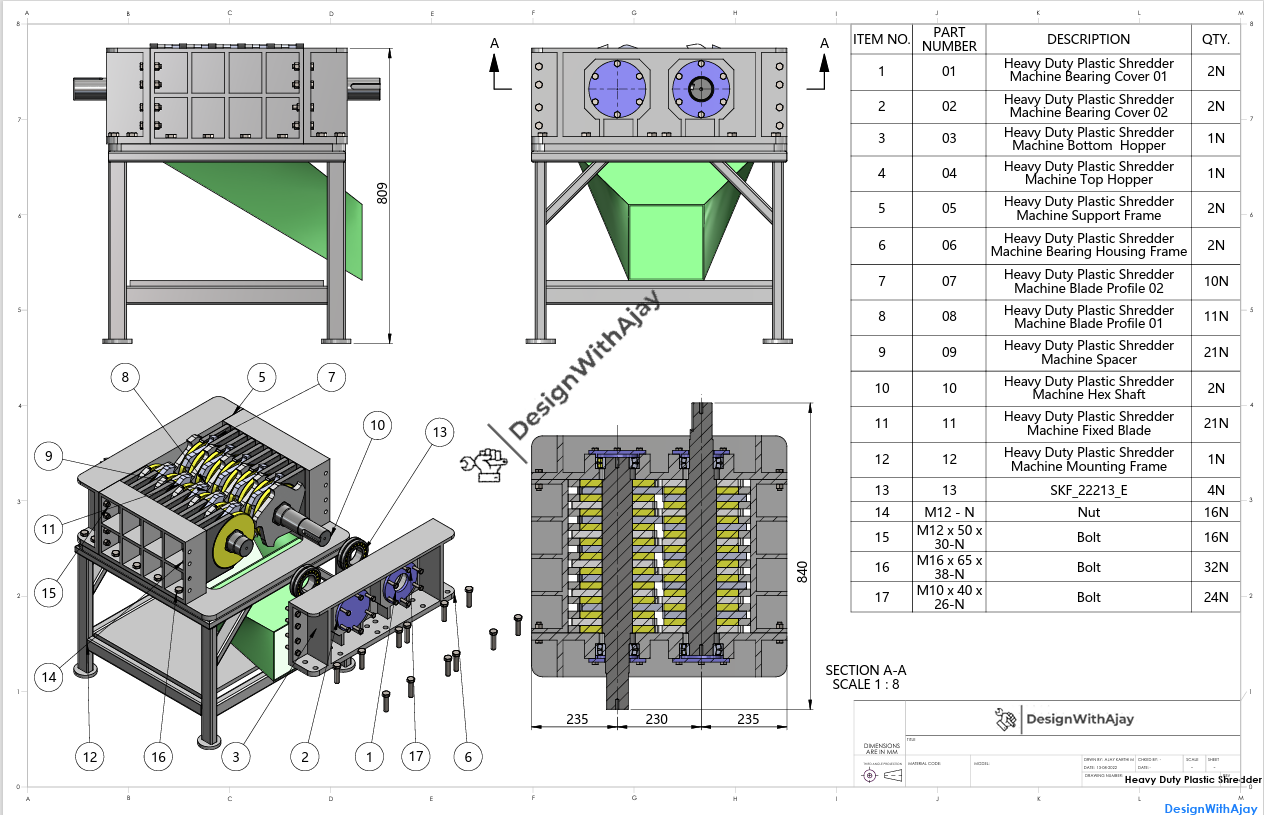

Complete 2D-CAD drawing of the Heavy Duty Plastic Shredder Machine Prototype #341 with full part list and step-by-step assembly design. Ideal for engineers, manufacturers, and CAD professionals.

🔹 Includes:

• 2D-CAD full part drawing
• Assembly view with part numbers
• Step files of all individual parts
• Scaled dimensions for accurate fabrication

🔹 Use Case:
Perfect for prototyping heavy-duty shredders, training modules, or enhancing your industrial CAD design portfolio.

🔹 File Type: 2D-CAD + STEP (Digital Download)

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • PayPal
  • Visa Card
Category: Tags: , ,

Description

Upgrade your design and prototyping workflow with the Heavy Duty Plastic Shredder Machine (Prototype) #341, now available as a 2D-CAD drawing from DesignWithAjay. This pack includes detailed technical illustrations and step files of all individual parts and the complete assembly drawing.

Whether you’re in fabrication, mechanical engineering, or machine design, this prototype drawing provides a precise visual guide for your shredding unit build. It’s especially useful for those working on industrial shredders or custom SPM (Special Purpose Machine) setups.
