Single Stage Helical Gear Box

Description

Uncover detailed engineering insights with the Single Stage Helical Gear Box (1:2 Ratio) #361, brought to you by DesignWithAjay. This complete design package includes 2D technical drawings and STEP files of all components—making it perfect for students, engineers, or anyone in mechanical design and gear system prototyping.

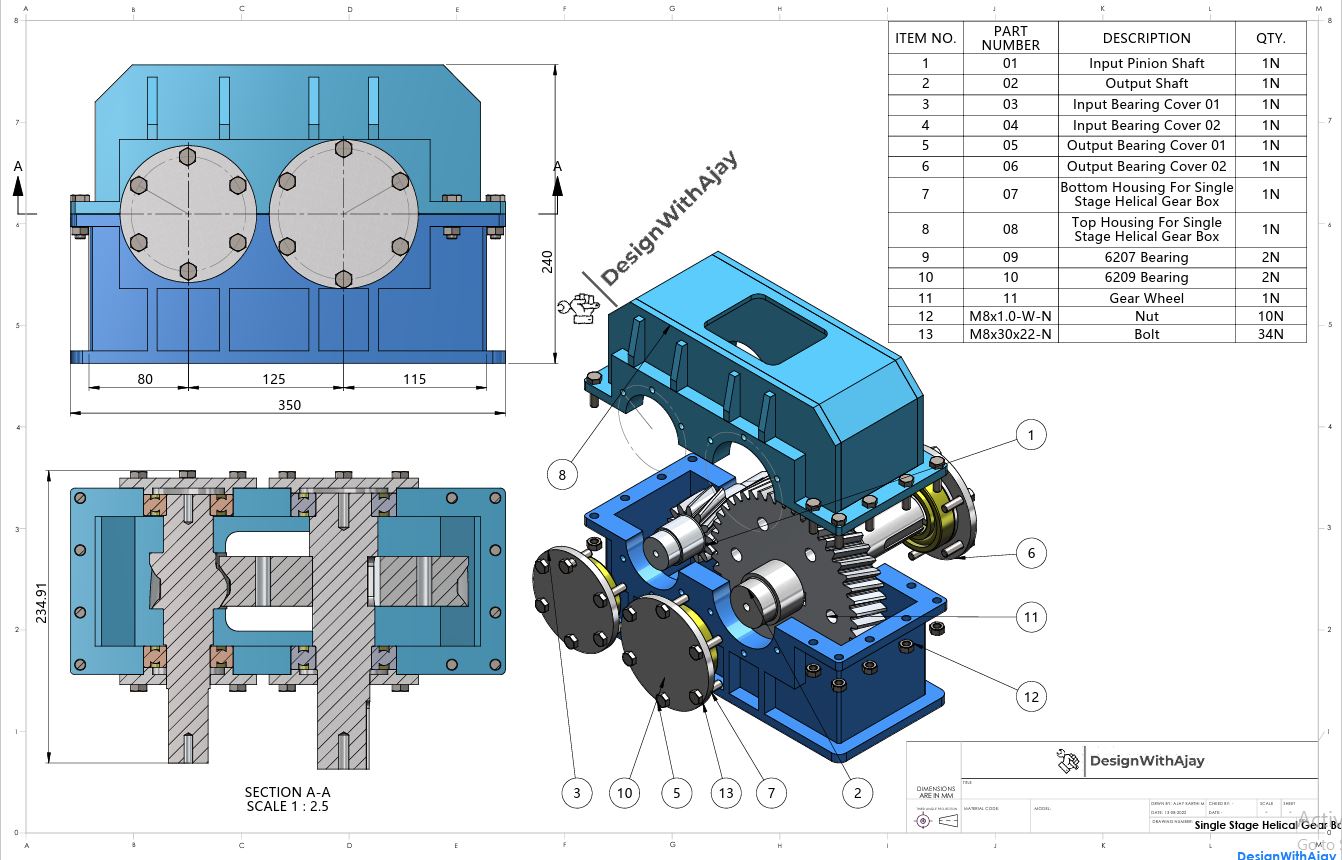

This product offers a detailed breakdown of part names, quantities, dimensions, and exploded views for easier understanding and fabrication.

🔹 What You’ll Get:

• 2D CAD drawings (Top, Side, Sectional views)

• Bill of materials with part numbers and quantities

• STEP files of all components and final assembly

• Gear box design with 1:2 ratio

🔹 Best For:

• Mechanical engineers

• CAD professionals

• Students & Industrial designers

• SPM machine developers

🔹 Delivery Format: Digital download (CAD + STEP files)
