Sale!

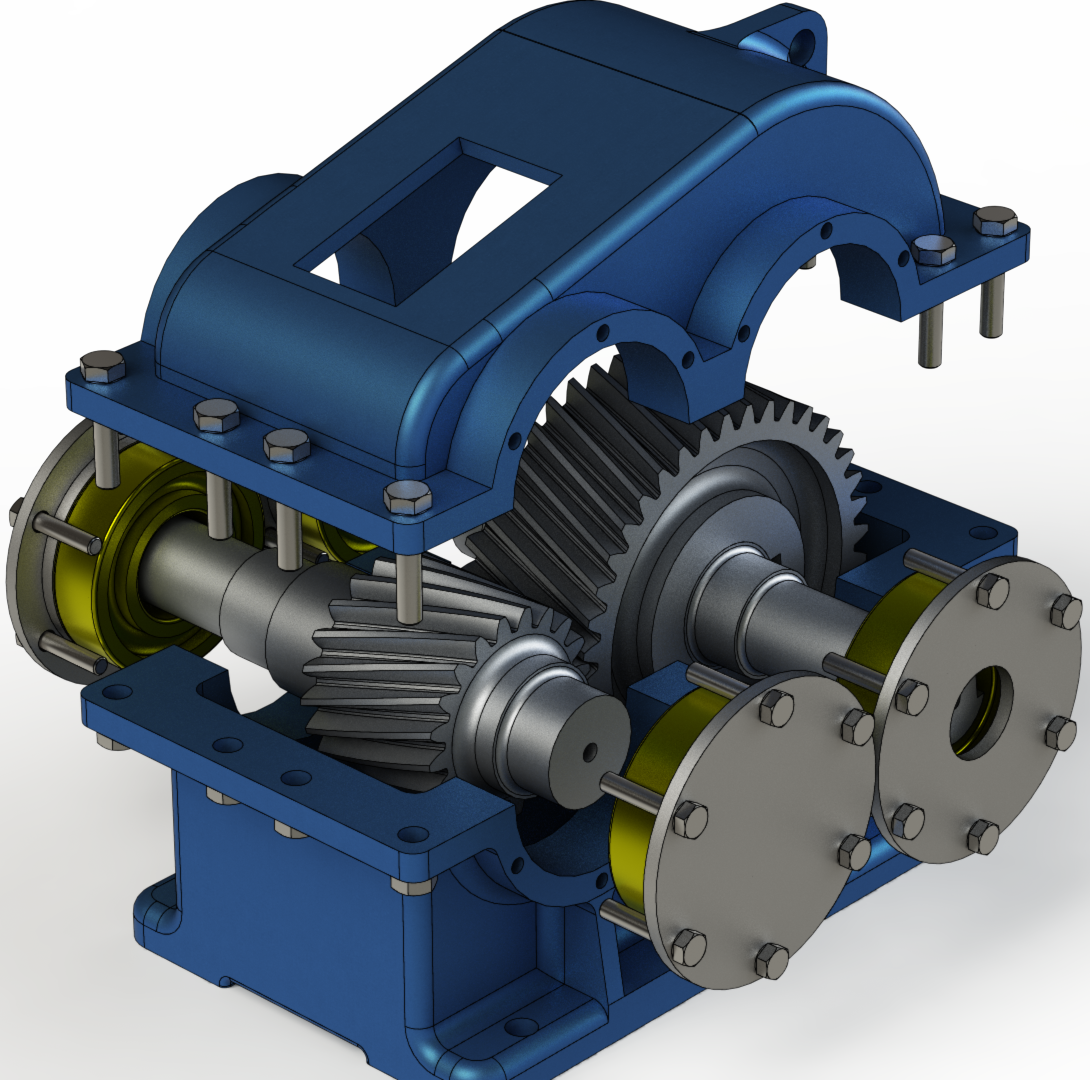

Single-Stage Helical Gearbox with a 1:2 ratio, designed for efficient power transmission, smooth operation, and industrial applications.
Single Stage Helical Gear Box (1:2 Ratio) - Image 2

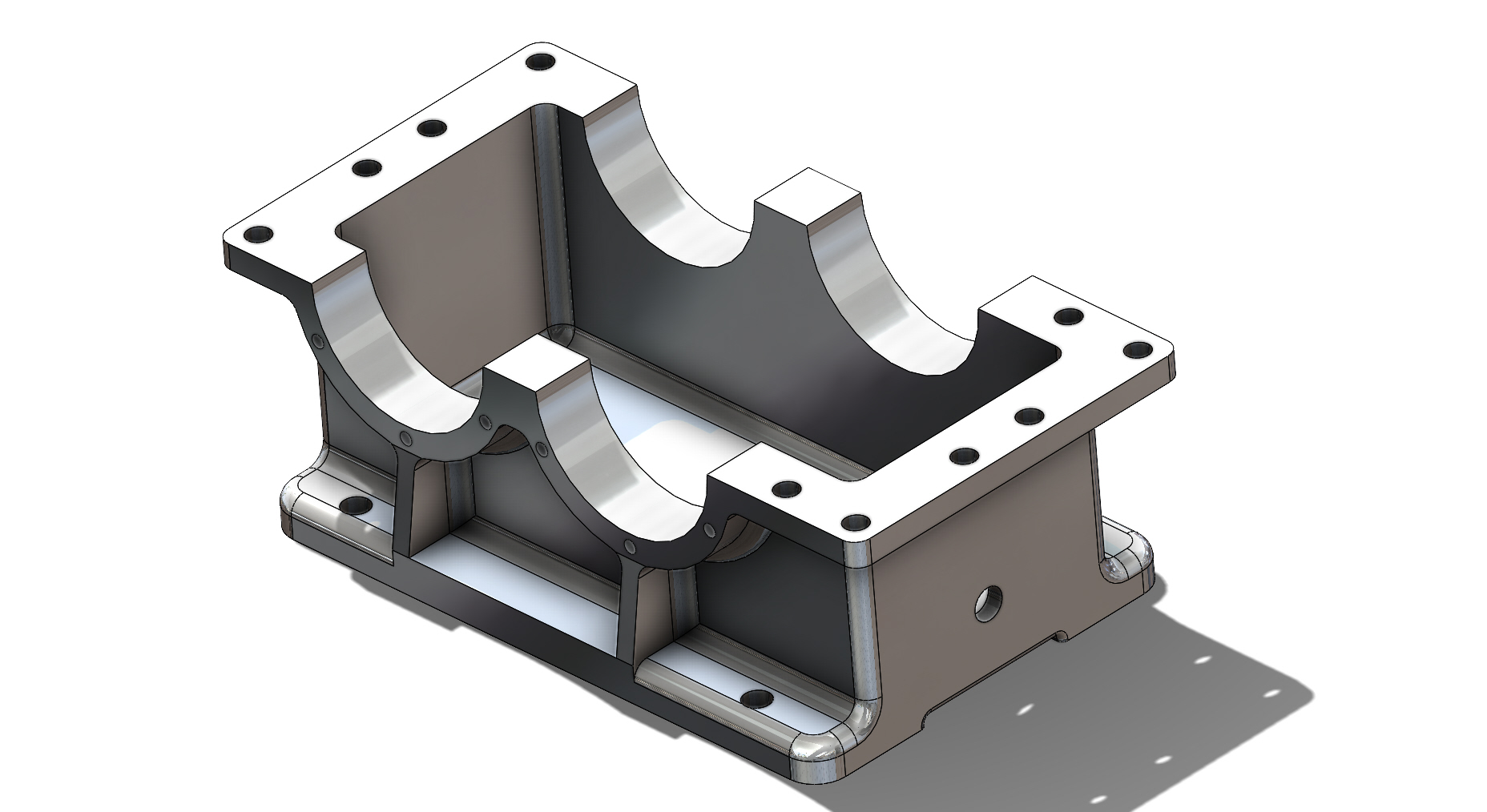

3D model of Bottom Housing
Single Stage Helical Gear Box (1:2 Ratio) - Image 4
Single Stage Helical Gear Box (1:2 Ratio) - Image 5
Single Stage Helical Gear Box (1:2 Ratio) - Image 6

Single Stage Helical Gear Box (1:2 Ratio)

Original price was: ₹2,000.00.Current price is: ₹990.00.

Complete 2D-CAD drawing of the Single Stage Helical Gear Box (1:2 Ratio) #361 with full part list and step-by-step assembly design. Ideal for engineers, manufacturers, and CAD professionals.

• File Formats Provided: STEP, DXF, IGS
• Applications: Perfect for simulating or designing power transmission systems in industrial setups
• Delivery Mode: Instant digital download for quick access after purchase
• License Terms: Suitable for personal and commercial use (redistribution or unauthorized sharing prohibited)

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • PayPal
  • Visa Card
Category: Tags: ,

Description

Experience the efficiency and precision of the Helical Gearbox (1:2 Ratio), exclusively available at DesignWithAjay. This advanced gearbox is engineered to deliver seamless power transmission and torque optimization, making it ideal for industrial and mechanical applications. Offered in STEP, DXF, and IGS formats, it integrates effortlessly into your design and simulation projects.
At DesignWithAjay, we specialize in crafting innovative solutions like SPM (Special Purpose Machines) to enhance operational performance. Each gearbox is meticulously designed for durability, reliability, and superior functionality.

Elevate your engineering projects with our expertly crafted Helical Gearbox model. Designed for engineers, manufacturers, and industrial designers who demand precision and excellence.
